Experiment 2.4.1: Soft intervention on red with color wheel

This is a re-run of Ex 2.4 with more mature tooling. See the earlier notebook for discussion.

from __future__ import annotations

nbid = '2.4.1'  # ID for tagging assets
nbname = 'Soft intervention on red with color wheel'
experiment_name = f'Ex {nbid}: {nbname}'
project = 'ex-preppy'

# Basic setup: Logging, Experiment (Modal)
import logging

import modal

from infra.requirements import uv_freeze, project_packages
from utils.logging import SimpleLoggingConfig
from ex_color.vis import NbViz

logging_config = (
    SimpleLoggingConfig()
    .info('notebook', 'utils', 'mini', 'ex_color')
    .error('matplotlib.axes')  # Silence warnings about set_aspect
)
logging_config.apply()

# This is the logger for this notebook
log = logging.getLogger(f'notebook.{nbid}')

image = (
    modal.Image.debian_slim()
    .pip_install(*uv_freeze(all_groups=True, not_groups='dev'))
    .add_local_python_source(*project_packages())
)
volume = modal.Volume.from_name(f'{project}-{nbid}', create_if_missing=True, version=2)
app = modal.App(name=f'{project}-{nbid}', image=image, volumes={'/data': volume})

viz = NbViz(nbid)

Model parameters

Like Ex 2.4, we use the following regularizers:

  • Anchor: pins red to $(1,0,0,0)$ (4D)
  • AxisAlignedSubspace: attracts vibrant hues to dimensions $0,1$
  • Separate: angular repulsion to reduce global clumping (applied within each batch)
import torch

from ex_color.loss import AngularAnchor, AxisAlignedSubspace, Separate, RegularizerConfig

K = 4  # bottleneck dimensionality
N = 1  # number of nonlinear layers
RED = (1, 0, 0, 0)
assert len(RED) == K
BATCH_SIZE = 64
CUBE_SUBDIVISIONS = 8
NUM_RUNS = 60  # to probe seed sensitivity
RUN_SEEDS = [i for i in range(NUM_RUNS)]

reg_separate = RegularizerConfig(
    name='separate',
    compute_loss_term=Separate(power=100.0, shift=True),
    label_affinities=None,
    layer_affinities=['bottleneck'],
)
reg_anchor = RegularizerConfig(
    name='anchor',
    compute_loss_term=AngularAnchor(torch.tensor(RED, dtype=torch.float32)),
    label_affinities={'red': 1.0},
    layer_affinities=['bottleneck'],
    phase=('train', 'validate'),
)
reg_subspace = RegularizerConfig(
    name='subspace',
    compute_loss_term=AxisAlignedSubspace((0, 1)),
    label_affinities={'vibrant': 1},
    # label_affinities={'primary': 1},
    layer_affinities=['bottleneck'],
    phase=('train', 'validate'),
)

from mini.temporal.dopesheet import Dopesheet

dopesheet = Dopesheet.from_csv(f'./ex-{nbid}-dopesheet.csv')
viz.tab_dopesheet(dopesheet)
viz.plot_dopesheet(dopesheet)

Parameter schedule

STEP PHASE ACTION lr separate anchor subspace
0 Train 1e-08 0.01 0.01
10 0.01
375 0.1
750 0.1 0.01 0.1
1125 0.1
1425 0.1 0 0 0
1500 0.05

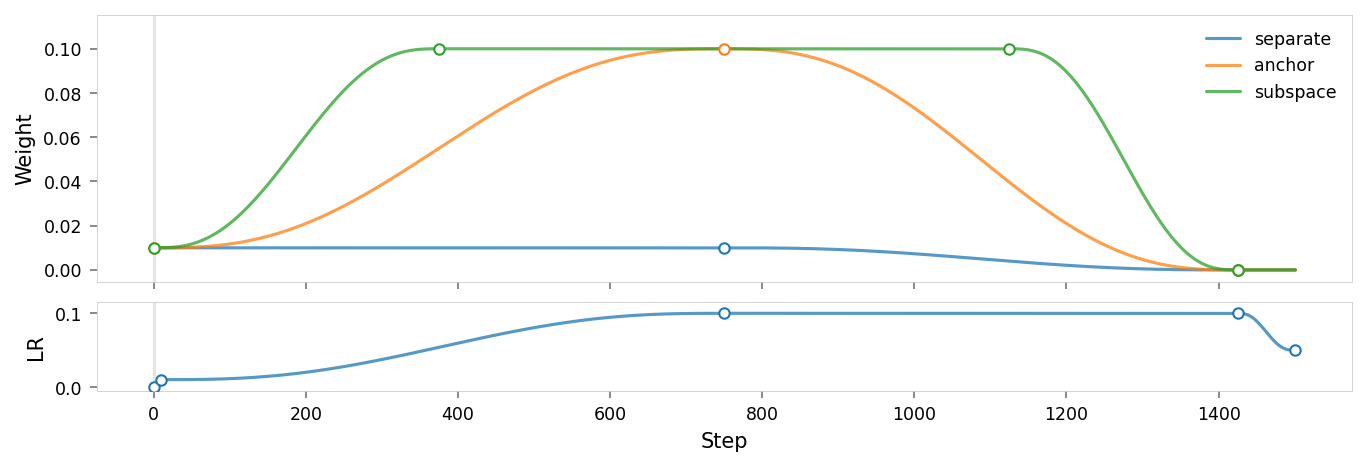

Plot showing the parameter schedule for the training run, titled "". The plot has two sections: the upper section shows various regularization weights over time, and the lower section shows the learning rate over time. The x-axis represents training steps.

Data

Data is the same as last time: color cubes with values in RGB.

from torch.utils.data import DataLoader, RandomSampler

from ex_color.data.cube_dataset import prep_color_dataset, redness, stochastic_labels, exact_labels, vibrancy


def prep_train_data(training_subs: int, *, batch_size: int) -> DataLoader:
    dataset = prep_color_dataset(
        training_subs,
        sample_at='cell-corners',
        red=lambda c: redness(c) ** 8 * 0.08,
        vibrant=lambda c: vibrancy(c) ** 10 * 0.01,
    )
    return DataLoader(
        dataset,
        batch_size=batch_size,
        num_workers=4,
        sampler=RandomSampler(dataset, num_samples=len(dataset), replacement=True),
        collate_fn=stochastic_labels,
    )


def prep_val_data(training_subs: int, *, batch_size: int) -> DataLoader:
    dataset = prep_color_dataset(
        training_subs,
        sample_at='cell-centers',
        red=lambda c: redness(c) == 1,
        # vibrant=lambda c: vibrancy(c) == 1,
    )
    return DataLoader(
        dataset,
        batch_size=batch_size,
        num_workers=2,
        collate_fn=exact_labels,
    )

Train

from typing import Callable

import torch
import wandb

from ex_color.model import CNColorMLP
from ex_color.seed import set_deterministic_mode
from ex_color.workflow import train_model
from ex_color.evaluation import Result
from utils.time import hour


@app.function(
    cpu=1,
    max_containers=20,
    timeout=1 * hour,
    env={'WANDB_API_KEY': wandb.Api().api_key or ''},
)
async def train(
    dopesheet: Dopesheet,
    regularizers: list[RegularizerConfig],
    *,
    seed: int,
    score_fn: Callable[[CNColorMLP], float],
):
    """Train the model with the given dopesheet and variant."""
    logging_config.apply()

    if seed is not None:
        set_deterministic_mode(seed)

    train_loader = prep_train_data(CUBE_SUBDIVISIONS, batch_size=BATCH_SIZE)
    val_loader = prep_val_data(CUBE_SUBDIVISIONS, batch_size=BATCH_SIZE)
    model = CNColorMLP(K, n_nonlinear=N)
    res = train_model(
        model,
        dopesheet,
        regularizers,
        train_loader,
        val_loader,
        experiment_name=experiment_name,
        project=project,
        hparams={'seed': seed},
    )

    score = score_fn(res.model)
    key = f'model-{res.id_}.pt'
    torch.save(res.model.state_dict(), f'/data/{key}')
    return Result(seed, key, res.url, res.summary, score)

from math import cos, radians

from ex_color.evaluation import EvaluationPlan, ScoreByHSVSimilarity
from ex_color.intervention import InterventionConfig, Suppression, BoundedFalloff


falloff = BoundedFalloff(
    cos(radians(90)),  # cos(max_angle)
    1,  # completely squash fully-aligned vectors
    # 2,  # soft rim, sharp hub
    0,
)
suppression = InterventionConfig(
    apply=Suppression(torch.tensor(RED), falloff),
    layer_affinities=['bottleneck'],
)
suppression_plan = EvaluationPlan(
    {'suppression'},
    lambda m: m,
    [suppression],
)

score_fn = ScoreByHSVSimilarity(suppression_plan, (0.0, 1.0, 1.0), power=2.0, cube_subdivisions=CUBE_SUBDIVISIONS)

import asyncio

# Reload dopesheet: makes tweaking params during development easier
dopesheet = Dopesheet.from_csv(f'./ex-{nbid}-dopesheet.csv')
regularizers = [reg_separate, reg_anchor, reg_subspace]


async def sweep():
    logging_config.apply()
    workers = [train.remote.aio(dopesheet, regularizers, seed=seed, score_fn=score_fn) for seed in RUN_SEEDS]
    return await asyncio.gather(*workers)


with app.run():
    results = await sweep()

from IPython.display import display
from ex_color.evaluation import results_to_dataframe

runs_df = results_to_dataframe(results)
# Show min, max, mean, stddev of each column
log.info(f'Summary statistics for all {len(runs_df)} runs:')
display(runs_df.describe().loc[['min', 'max', 'mean', 'std']].style.format(precision=4))

print('Correlation of reconstruction error vs. similarity to anchor')
viz.plot_boxplot(runs_df['score'], ylabel='', xlim=(None, 1), tags=('score',))

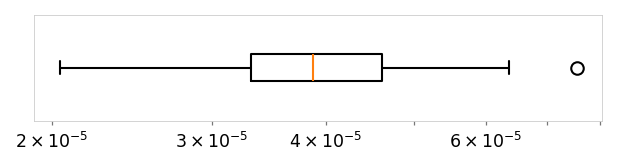

print('Reconstruction loss')
viz.plot_boxplot(runs_df['val_recon'], ylabel='', log_scale=True, tags=('val_recon',))

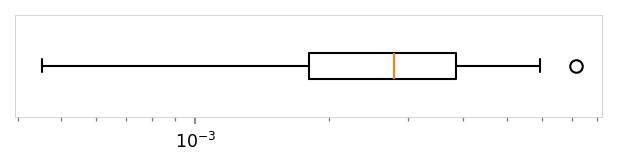

print('Anchor loss')
viz.plot_boxplot(runs_df['val_anchor'], ylabel='', log_scale=True, tags=('val_anchor',))

I 949.5 no.2.4.1:Summary statistics for all 60 runs:
  seed score val_loss labels/n/vibrant val_recon labels/n/_any labels/n/red labels/n_total _runtime val_anchor
min 0.0000 0.8821 0.0000 85.0000 0.0000 160.0000 64.0000 96064.0000 45.4041 0.0005
max 59.0000 0.9910 0.0001 132.0000 0.0001 225.0000 104.0000 96064.0000 153.1740 0.0072
mean 29.5000 0.9515 0.0000 107.9500 0.0000 189.7167 82.2167 96064.0000 68.9505 0.0029
std 17.4642 0.0236 0.0000 10.6460 0.0000 13.8834 8.3951 0.0000 28.0112 0.0015

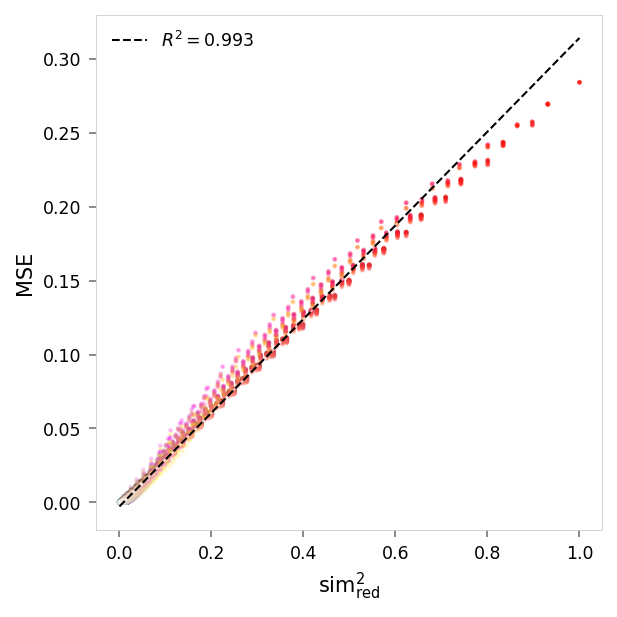

Correlation of reconstruction error vs. similarity to anchor

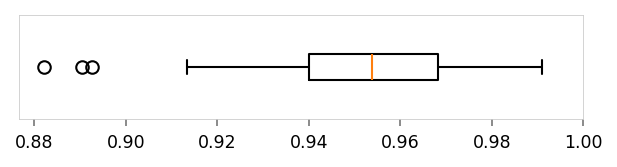

Horizontal box plot showing the distribution of .
Reconstruction loss
Horizontal box plot showing the distribution of .
Anchor loss
Horizontal box plot showing the distribution of .

Select the best runs from the Pareto front of non-dominated runs, optimizing for both validation loss and score.

from ex_color.evaluation import pareto_front

non_dominated = pareto_front(runs_df, minimize=['val_recon', 'val_anchor'], maximize=['score'])
log.info(f'Best of {len(non_dominated)} non-dominated runs (Pareto front):')
display(non_dominated.sort_values(by='score', ascending=False).head(5).style.format(precision=4, hyperlinks='html'))

I 951.5 no.2.4.1:Best of 4 non-dominated runs (Pareto front):
  seed wandb url score val_loss labels/n/vibrant val_recon labels/n/_any labels/n/red labels/n_total _runtime val_anchor
7 7 https://wandb.ai/z0r/ex-preppy/runs/0kj9jztg 0.9910 0.0000 100 0.0000 173 73 96064 52.0971 0.0006
40 40 https://wandb.ai/z0r/ex-preppy/runs/11g2ie4j 0.9848 0.0000 107 0.0000 182 75 96064 118.5703 0.0020
39 39 https://wandb.ai/z0r/ex-preppy/runs/ce5iw8rf 0.9780 0.0000 101 0.0000 182 81 96064 103.4187 0.0005
30 30 https://wandb.ai/z0r/ex-preppy/runs/aalvzihq 0.9531 0.0000 99 0.0000 188 89 96064 71.2192 0.0034
from typing import cast

from mini.data import load_checkpoint_from_volume

best_run = results[cast(int, non_dominated['score'].idxmax())]
log.info(f'Loading checkpoint of best run: seed={best_run.seed}, score={best_run.score:.4f} @ {best_run.url}')
model = CNColorMLP(K, n_nonlinear=N)
model = load_checkpoint_from_volume(model, volume, best_run.checkpoint_key)

I 951.5 no.2.4.1:Loading checkpoint of best run: seed=7, score=0.9910 @ https://wandb.ai/z0r/ex-preppy/runs/0kj9jztg

Results

# # Generate a list of dimensions to visualize
# from itertools import combinations
# [
#     (
#         b,
#         a,
#         (a + 1) % K if (a + 1) % K not in (a, b) else (a + 2) % K,
#     )
#     for a, b in combinations(tuple(range(K)), 2)
# ]

from ex_color.evaluation import TestSet

test_set = TestSet.create()

from IPython.display import clear_output

baseline_results = test_set.evaluate(model, [], tags={'baseline'})
clear_output()

viz.plot_cube(baseline_results)
# viz.plot_recon_loss(baseline_results)
# viz.plot_latent_space(
#     baseline_results,
#     dims=[(1, 0, 2), (2, 0, 1), (3, 0, 1), (2, 1, 3), (3, 1, 2), (3, 2, 0)],
# )

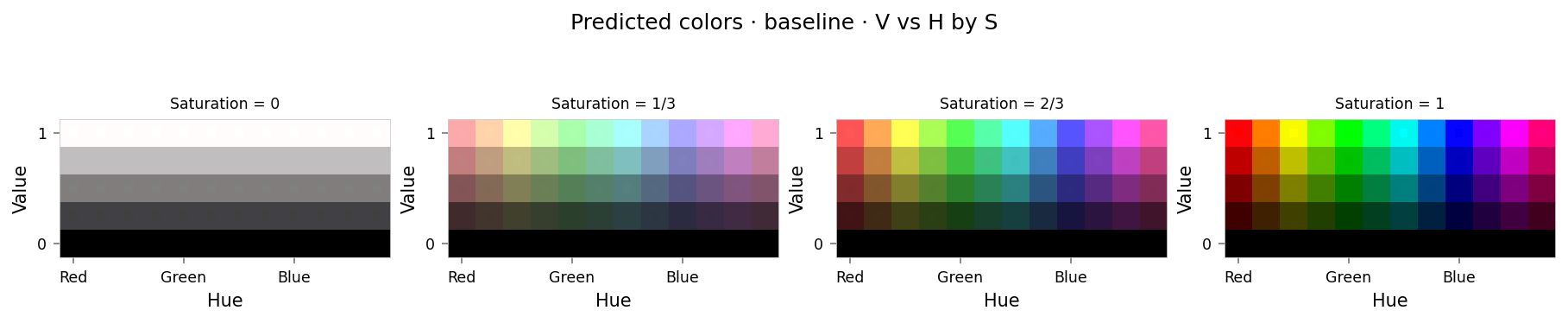

Plot showing four slices of the HSV cube, titled "Predicted colors · baseline · V vs H by S". Nominally, each slice has constant saturation, but varies in value (brightness) from top to bottom, and in hue from left to right. Each color value is represented as a square patch of that color. The outer portion of the patches shows the color as reconstructed by the model; the inner portion shows the true (input) color.

Suppression

from math import cos, radians
from IPython.display import clear_output

from ex_color.intervention import Suppression, BoundedFalloff


falloff = BoundedFalloff(
    cos(radians(90)),  # cos(max_angle)
    1,  # completely squash fully-aligned vectors
    # 2,  # soft rim, sharp hub
    0,
)
suppression = InterventionConfig(
    apply=Suppression(torch.tensor(RED), falloff),
    layer_affinities=['bottleneck'],
)
suppression_results = test_set.evaluate(model, [suppression], tags={'suppression'})
clear_output()

viz.plot_cube(suppression_results)
# viz.plot_recon_loss(suppression_results)
# viz.plot_latent_space(
#     suppression_results,
#     dims=[(1, 0, 2), (2, 0, 1), (3, 0, 1), (2, 1, 3), (3, 1, 2), (3, 2, 0)],
# )
Plot showing four slices of the HSV cube, titled "Predicted colors · suppression · V vs H by S". Nominally, each slice has constant saturation, but varies in value (brightness) from top to bottom, and in hue from left to right. Each color value is represented as a square patch of that color. The outer portion of the patches shows the color as reconstructed by the model; the inner portion shows the true (input) color.

Repulsion

from math import cos, radians
from IPython.display import clear_output

from ex_color.intervention import Repulsion, LinearMapper

# mapper = FastBezierMapper(
#     cos(radians(90)),
#     cos(radians(60)),
# )
mapper = LinearMapper(
    cos(radians(90)),
    cos(radians(89)),
)
repulsion = InterventionConfig(
    Repulsion(torch.tensor(RED), mapper),
    layer_affinities=['bottleneck'],
)
repulsion_results = test_set.evaluate(model, [repulsion], tags={'repulsion'})
clear_output()

viz.plot_cube(repulsion_results)
# viz.plot_recon_loss(repulsion_results)
# viz.plot_latent_space(
#     repulsion_results,
#     dims=[(1, 0, 2), (2, 0, 1), (3, 0, 1), (2, 1, 3), (3, 1, 2), (3, 2, 0)],
# )
Plot showing four slices of the HSV cube, titled "Predicted colors · repulsion · V vs H by S". Nominally, each slice has constant saturation, but varies in value (brightness) from top to bottom, and in hue from left to right. Each color value is represented as a square patch of that color. The outer portion of the patches shows the color as reconstructed by the model; the inner portion shows the true (input) color.

Ablation

from ex_color.surgery import ablate

ablated_model = ablate(model, 'bottleneck', [0])
ablation_results = test_set.evaluate(ablated_model, [], tags={'ablated'})
clear_output()

viz.plot_cube(ablation_results)
# viz.plot_recon_loss(ablation_results)
# viz.plot_latent_space(
#     ablation_results.latent_cube,
#     tags=ablation_results.tags,
#     dims=[(1, 0, 2), (2, 0, 1), (3, 0, 1), (2, 1, 3), (3, 1, 2), (3, 2, 0)],
# )

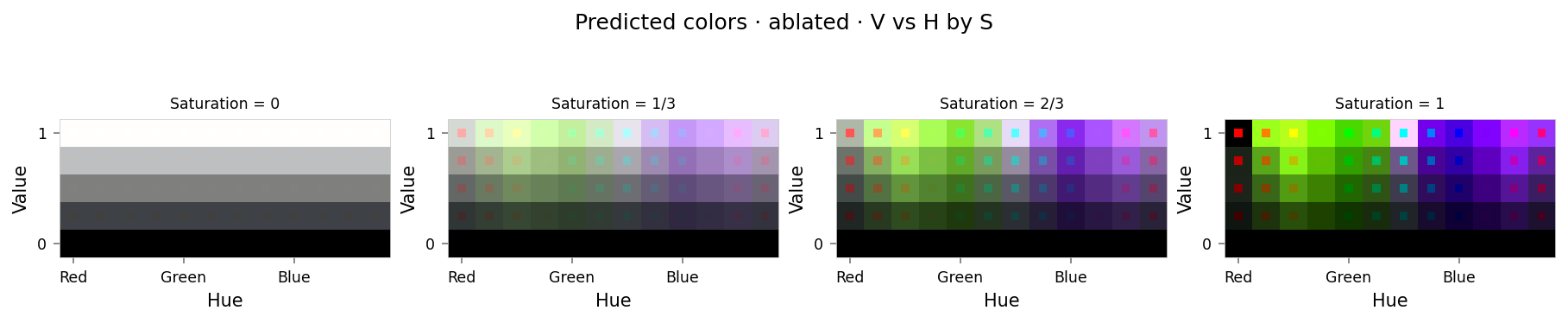

Plot showing four slices of the HSV cube, titled "Predicted colors · ablated · V vs H by S". Nominally, each slice has constant saturation, but varies in value (brightness) from top to bottom, and in hue from left to right. Each color value is represented as a square patch of that color. The outer portion of the patches shows the color as reconstructed by the model; the inner portion shows the true (input) color.
import numpy as np
from ex_color.vis.helpers import ThemedAnnotation


max_error = np.max(
    [
        baseline_results.loss_cube['MSE'],
        suppression_results.loss_cube['MSE'],
        repulsion_results.loss_cube['MSE'],
    ]
)

print('Baseline')
viz.plot_stacked_results(
    baseline_results,
    latent_dims=((1, 0, 2), (1, 3, 0)),
    max_error=max_error,
)

print('Suppression')
viz.plot_stacked_results(
    suppression_results,
    latent_dims=((1, 0, 2), (1, 3, 0)),
    max_error=max_error,
    latent_annotations=[
        ThemedAnnotation(direction=RED, angle=2 * (np.pi / 2 - falloff.a), dashed=True),
    ],
)

print('Repulsion')
viz.plot_stacked_results(
    repulsion_results,
    latent_dims=((1, 0, 2), (1, 3, 0)),
    max_error=max_error,
    latent_annotations=[
        ThemedAnnotation(direction=RED, angle=2 * (np.pi / 2 - mapper.a), dashed=True),
        ThemedAnnotation(direction=RED, angle=2 * (np.pi / 2 - mapper.b), dashed=False),
    ],
)

print('Ablation')
viz.plot_stacked_results(
    ablation_results,
    latent_dims=((1, 0, 2), (1, 3, 0)),
    max_error=max_error,
)

Baseline
Composite figure with two latent panels (top), a color slice (middle), and a loss chart (bottom).
Suppression

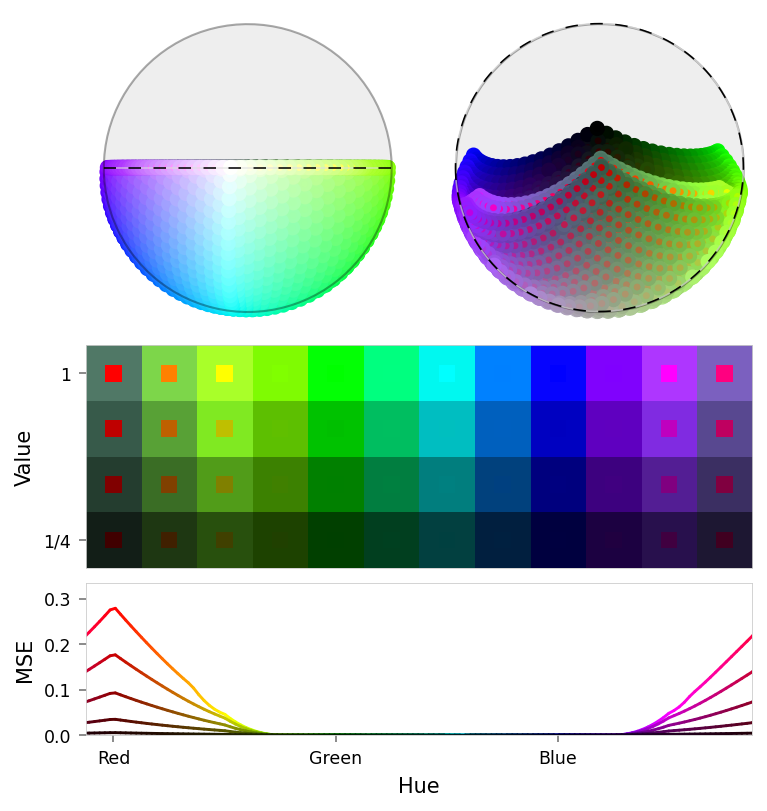

Composite figure with two latent panels (top), a color slice (middle), and a loss chart (bottom).
Repulsion
Composite figure with two latent panels (top), a color slice (middle), and a loss chart (bottom).
Ablation

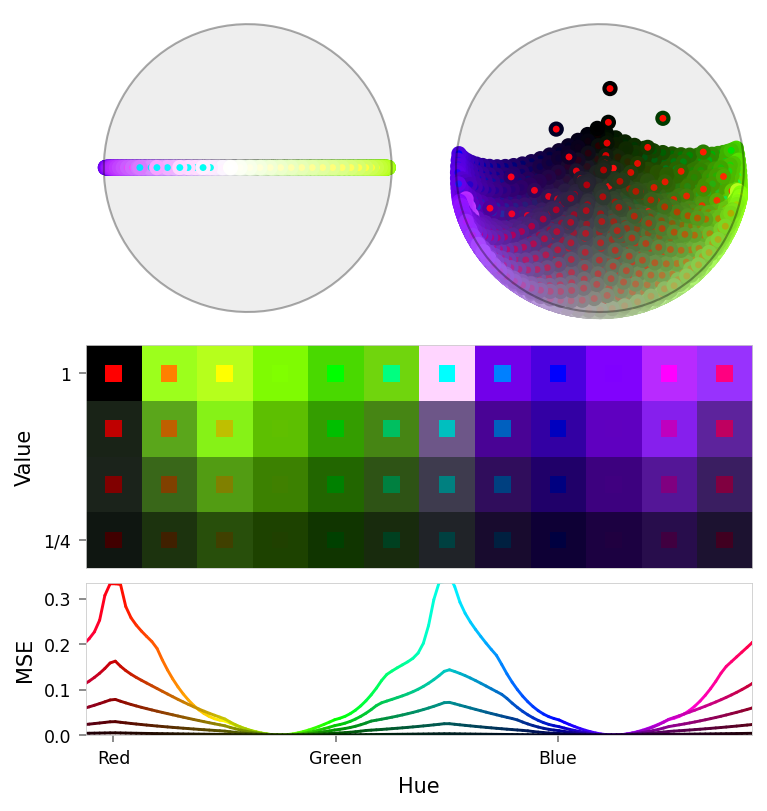

Composite figure with two latent panels (top), a color slice (middle), and a loss chart (bottom).
viz.tab_error_vs_color(baseline_results, suppression_results, repulsion_results, ablation_results)
viz.tab_error_vs_color_latex(baseline_results, suppression_results, repulsion_results, ablation_results)
Name RGB Baseline Suppression Δ Sup Repulsion Δ Rep Ablated Δ Abl
red
0.001 0.284 +0.284 0.333 +0.333 0.333 +0.333
orange
0.000 0.154 +0.154 0.135 +0.135 0.138 +0.137
yellow
0.000 0.046 +0.046 0.030 +0.030 0.031 +0.031
lime
0.000 0.000 +0.000 0.000 +0.000 0.000 +0.000
green
0.000 0.000 +0.000 0.000 +0.000 0.035 +0.035
teal
0.000 0.000 +0.000 0.000 +0.000 0.140 +0.140
cyan
0.001 0.001 +0.000 0.001 +0.000 0.342 +0.341
azure
0.000 0.000 +0.000 0.000 +0.000 0.153 +0.153
blue
0.000 0.000 +0.000 0.000 +0.000 0.034 +0.034
purple
0.000 0.000 +0.000 0.000 +0.000 0.000 +0.000
magenta
0.000 0.049 +0.048 0.033 +0.033 0.035 +0.034
pink
0.000 0.158 +0.158 0.144 +0.144 0.148 +0.148
black
0.000 0.000 +0.000 0.000 +0.000 0.000 +0.000
dark gray
0.000 0.000 +0.000 0.000 +0.000 0.000 +0.000
gray
0.000 0.000 -0.000 0.000 -0.000 0.000 -0.000
light gray
0.000 0.000 -0.000 0.000 -0.000 0.000 -0.000
white
0.000 0.000 -0.000 0.000 -0.000 0.000 -0.000
\begin{table}
\centering
\label{tab:placeholder}
\caption{Reconstruction error by color and intervention method}
\sisetup{
    round-mode = places,
    round-precision = 3,
    table-auto-round = true,
    % drop-zero-decimal = true,
}
\begin{tabular}{l c g g g g}
\toprule
\multicolumn{2}{c}{{Color}} & \multicolumn{1}{c}{{Baseline}} & \multicolumn{1}{c}{{Suppression}} & \multicolumn{1}{c}{{Repulsion}} & \multicolumn{1}{c}{{Ab}} \\
\midrule
Red        & \swatch{FF0000} &  0.000646436 &  0.283565700 &  0.332686901 &  0.332686901 \\
Orange     & \swatch{FF7F00} &  0.000063273 &  0.153662786 &  0.135243252 &  0.137482300 \\
Yellow     & \swatch{FFFF00} &  0.000411471 &  0.045807716 &  0.029817864 &  0.030973246 \\
Lime       & \swatch{7FFF00} &  0.000108202 &  0.000000000 &  0.000000000 &  0.000005554 \\
Green      & \swatch{00FF00} &  0.000220425 &  0.000000000 &  0.000000000 &  0.034675915 \\
Teal       & \swatch{00FF7F} &  0.000000988 &  0.000000000 &  0.000000000 &  0.140236348 \\
Cyan       & \swatch{00FFFF} &  0.001272683 &  0.000000000 &  0.000000000 &  0.341102749 \\
Azure      & \swatch{007FFF} &  0.000013033 &  0.000000000 &  0.000000000 &  0.152602151 \\
Blue       & \swatch{0000FF} &  0.000310250 &  0.000000000 &  0.000000000 &  0.034143761 \\
Purple     & \swatch{7F00FF} &  0.000052661 &  0.000000000 &  0.000000000 &  0.000002185 \\
Magenta    & \swatch{FF00FF} &  0.000248736 &  0.048393689 &  0.033117618 &  0.034419145 \\
Pink       & \swatch{FF007F} &  0.000200588 &  0.157892883 &  0.143878624 &  0.148011312 \\
Black      & \swatch{000000} &  0.000000000 &  0.000009886 &  0.000006748 &  0.000007794 \\
Dark gray  & \swatch{3F3F3F} &  0.000121933 &  0.000156107 &  0.000148776 &  0.000153554 \\
Gray       & \swatch{7F7F7F} &  0.000064245 & -0.000056821 & -0.000056655 & -0.000056814 \\
Light gray & \swatch{BFBFBF} &  0.000018872 & -0.000007299 & -0.000007730 & -0.000007258 \\
White      & \swatch{FFFFFF} &  0.000108910 & -0.000092652 & -0.000093251 & -0.000093862 \\
\bottomrule
\end{tabular}
\end{table}

viz.plot_error_vs_similarity(
    suppression_results,
    (0, 1, 1),
    anchor_name='red',
    power=2,
)

viz.plot_error_vs_similarity(
    repulsion_results,
    (0, 1, 1),
    anchor_name='red',
    power=2,
)

viz.plot_error_vs_similarity(
    ablation_results,
    (0, 1, 1),
    anchor_name='red',
    power=2,
)
Scatter plot showing reconstruction error versus similarity to red. Each point represents a color, with its position on the x-axis indicating how similar it is to pure red, and its position on the y-axis indicating the reconstruction error (mean squared error) for that color. The points are colored according to their actual color values.
MSE,sim² suppression: r = 1.00, R²: 0.99, p = 0
Scatter plot showing reconstruction error versus similarity to red. Each point represents a color, with its position on the x-axis indicating how similar it is to pure red, and its position on the y-axis indicating the reconstruction error (mean squared error) for that color. The points are colored according to their actual color values.
MSE,sim² repulsion: r = 0.99, R²: 0.98, p = 0

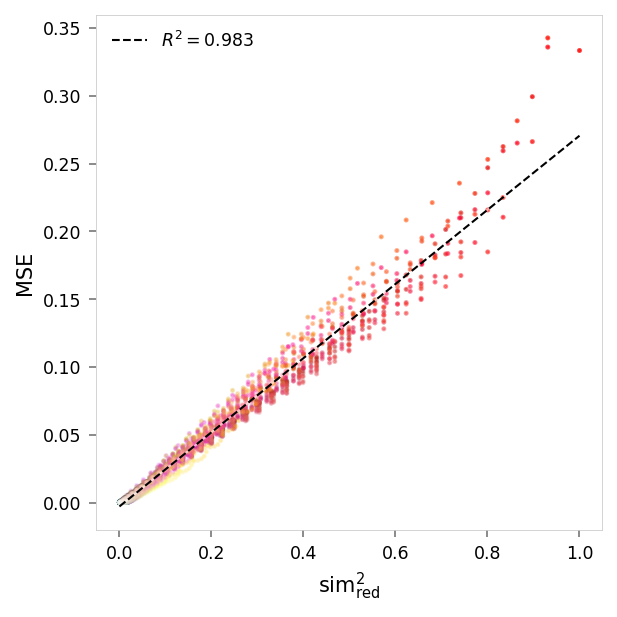

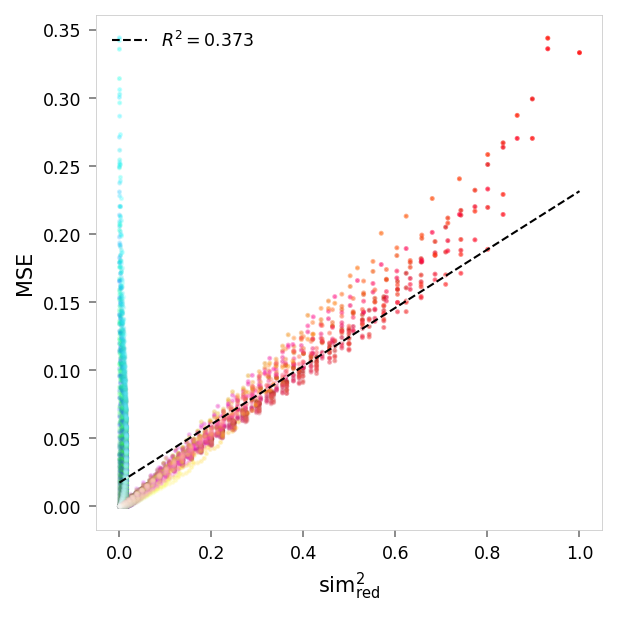

Scatter plot showing reconstruction error versus similarity to red. Each point represents a color, with its position on the x-axis indicating how similar it is to pure red, and its position on the y-axis indicating the reconstruction error (mean squared error) for that color. The points are colored according to their actual color values.
MSE,sim² ablated: r = 0.61, R²: 0.37, p = 0
